Introduction

Looking for a cost-effective parking solution for your business or property? A well-designed gravel parking lot offers remarkable durability at a fraction of the cost of asphalt or concrete alternatives. With proper planning and construction techniques, your commercial gravel parking lot can provide years of reliable service while requiring minimal maintenance.

For budget-conscious business owners and property managers, gravel parking areas represent one of the most affordable options available—typically costing 40-60% less than asphalt while still delivering professional results. The key lies not just in choosing gravel, but in implementing proven gravel parking lot design principles that prevent common issues like rutting, washouts, and excessive dust.

In this comprehensive guide, we’ll walk through the essential first steps to planning a commercial gravel parking lot that stands the test of time. Whether you’re developing a new property or expanding existing parking capacity, these expert recommendations will help you create a durable, low-maintenance space that serves your needs for years to come.

Initial Planning Considerations

Before breaking ground on your gravel parking lot construction project, several critical planning decisions will shape its success. Taking time to thoroughly assess these factors can prevent costly mistakes and ensure your investment delivers maximum value.

Determining Size and Capacity

The first step in any successful gravel parking lot design is calculating your specific parking needs:

  • Standard parking dimensions: Plan for spaces approximately 9′ x 18′ per vehicle, slightly larger than typical paved spots for easier navigation
  • ADA compliance requirements: Include properly sized accessible spaces (minimum 8′ wide with 5′ access aisles) with appropriate signage and proximity to entrances
  • Capacity calculations: Determine your required number of spaces based on:
    • Business type (retail typically requires more spaces than office buildings)
    • Expected peak traffic periods
    • Local zoning requirements (often specified as spaces per square footage)
  • Traffic flow patterns: Design one-way circulation where possible, with drive lanes of 12-24′ depending on whether you need one-way or two-way traffic

Remember that gravel parking lots benefit from slightly more generous dimensions than paved alternatives. The less precise nature of space delineation and the different driving experience on gravel surfaces means that additional room improves user comfort and reduces congestion.

Site Assessment

A thorough evaluation of your property provides essential information that will guide your gravel parking lot construction decisions:

Soil Conditions

The ground beneath your parking lot significantly impacts its performance:

  • Identify soil types through basic testing—clay soils require different preparation than sandy or loamy soils
  • Check for areas with poor drainage or unstable ground that might need special attention
  • Consider seasonal changes in soil stability, especially in regions with freeze-thaw cycles

Drainage Patterns

Water management is crucial for any successful gravel parking lot design:

  • Observe your property during rainfall to identify natural water flow directions
  • Note any areas where water naturally collects or channels form
  • Consider how neighboring properties might impact water movement onto your site

Climate Considerations

Your local weather patterns should influence several design decisions:

  • Areas with heavy rainfall may require additional drainage features
  • Regions with snow and ice need planning for winter maintenance
  • Hot, dry climates might require special dust control measures

Topography Evaluation

The natural shape of your land plays a significant role:

  • Relatively flat areas (1-5% slope) are ideal for parking lot construction
  • Properties with significant grade changes may require terracing or retaining walls
  • Consider how elevation differences will affect both construction costs and water flow

This assessment phase often reveals potential challenges before construction begins, potentially saving thousands in unexpected costs and preventing future parking lot failures.

Next Steps

With your initial planning complete, the next critical phases of your gravel parking lot construction project will include:

  • Structural design elements including proper base preparation
  • Material selection for optimal performance
  • Stabilization systems that dramatically extend parking lot lifespan
  • Ongoing maintenance strategies

We’ll cover these important topics in the upcoming sections of this guide.

Looking for expert guidance on your commercial gravel parking lot project? Contact BaseCore to learn how our stabilization systems can enhance performance while reducing lifetime costs.

Structural Design Elements

Creating a durable gravel parking lot requires more than simply dumping stone on the ground. The structural design of your parking area determines how it performs under daily use and weather conditions. Property owners who invest in proper structural elements during initial gravel parking lot construction enjoy significantly reduced maintenance costs and extended service life.

Subgrade Preparation

The foundation of your parking lot begins below the surface:

  • Excavation requirements: Remove topsoil and organic material to a depth of 8-12″ depending on soil conditions and expected vehicle weights
  • Soil compaction: Properly compact the native soil to create a stable foundation—skipping this step virtually guarantees future problems
  • Problem soil remediation: Apply appropriate techniques for challenging conditions:
    • Clay soils may require additional drainage layers
    • Sandy soils might need stabilization
    • Organic soils should be completely removed and replaced
  • Geotextile fabric installation: Consider placing permeable separation fabric to prevent mixing of subgrade with base materials and enhance structural integrity

This preparation phase is absolutely critical to long-term success. Many failed commercial gravel parking lots trace their problems to inadequate subgrade preparation that allowed rutting, sinking, and poor drainage from the start.

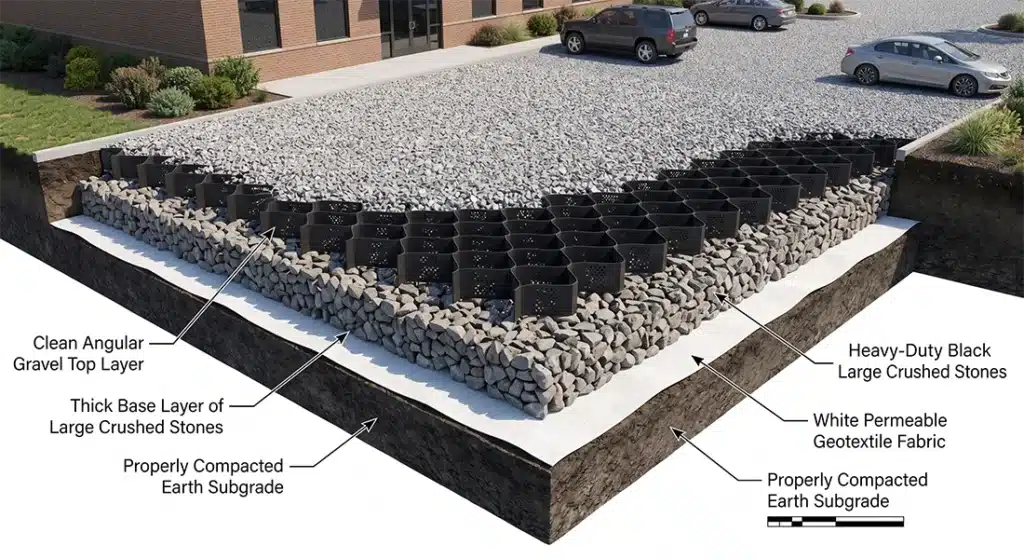

Base Layer Construction

The base layer provides the structural support for your parking surface:

  • Material selection: Choose angular, crushed stone (typically #3 or #4 size) that locks together when compacted rather than rounded river rock
  • Layer depth guidelines: Install a minimum of 4″ for light vehicles, increasing to 12″ for heavy-duty commercial applications
  • Compaction process: Apply mechanical compaction in 4″ lifts (layers) to achieve maximum density—proper compaction is essential for durability
  • Edge containment options: Consider installing perimeter barriers (concrete curbs, treated timber, or corten steel edging) to prevent material migration

A properly constructed base layer is perhaps the single most important factor in creating a gravel parking lot design that resists rutting and maintains its shape through years of use and challenging weather conditions.

Stabilization Systems

For commercial applications, modern stabilization grids represent a game-changing technology in gravel parking lot construction:

  • BaseCore Grid technology overview: These honeycomb or cellular panels, typically made from high-density polyethylene or other durable materials, distribute vehicle weight and lock gravel in place
  • Installation process:
    • Place directly on compacted base layer or geotextile
    • Connect panels according to manufacturer specifications
    • Fill cells with appropriately sized gravel
    • Compact surface material into cells
  • Performance benefits:
    • Dramatic reduction in surface material migration
    • Prevention of rutting, even under heavy vehicle traffic
    • Maintenance intervals extended by 3-5 times compared to unstabilized surfaces
    • Improved accessibility for all users including wheelchairs

While adding some initial cost, stabilization systems deliver exceptional return on investment through reduced maintenance and extended lifespan, making them essential for commercial gravel parking lot applications where appearance and performance matter.

Surface Layer Selection

The top layer of your parking lot determines both functionality and aesthetics:

  • Optimal materials: Select angular, crushed stone in 3/8″ to 3/4″ sizes that compacts well while allowing drainage
  • Depth guidelines: Apply 2″ of surface material above base layer or stabilization grid
  • Material options:
    • Crushed granite: Excellent compaction, attractive appearance, moderate cost
    • Crushed limestone: Good compaction, light color, potential for dust
    • River rock: Attractive but poor compaction (best when used with stabilization grids)
    • Recycled concrete: Economical and environmentally friendly option
  • Color and aesthetic considerations: Choose materials that complement your property’s visual identity

The ideal surface material balances drainage performance with stability and appearance, keeping in mind that smaller particles increase compaction but reduce drainage capacity.

Next Steps

With proper structural elements and drainage design in place, your gravel parking lot has a solid foundation for success. In the upcoming sections, we’ll explore:

  • Practical considerations like dust control and parking space marking
  • Maintenance best practices to protect your investment
  • Cost analysis and long-term value considerations
  • Working with contractors for optimal results

Need expert advice on your gravel parking lot project? Contact BaseCore to learn how our stabilization systems can create a more durable, low-maintenance parking solution for your business.

Practical Considerations

Creating a functional commercial gravel parking lot involves more than just structural elements and drainage. Several practical considerations determine how your parking area performs in daily use. Addressing these factors during the design phase helps ensure your investment delivers maximum value and user satisfaction.

Dust Control Solutions

Dust management is a common concern with gravel parking lot design, particularly in commercial settings where customer experience matters:

  • Traditional dust control methods often involve regular water application or chemical treatments that require ongoing maintenance and expense
  • BaseCore solution advantage: When installed with BaseCore geocell systems, gravel stays firmly in place, significantly reducing dust generation at the source
  • Environmental considerations: BaseCore’s stabilization approach minimizes the need for chemical dust suppressants that can impact local watersheds
  • Long-term dust reduction: The confined cell structure prevents the grinding action between loose stones that creates dust particles

By addressing dust control through structural stability rather than surface treatments, BaseCore systems offer a sustainable, long-term solution that reduces maintenance costs while improving air quality around your facility.

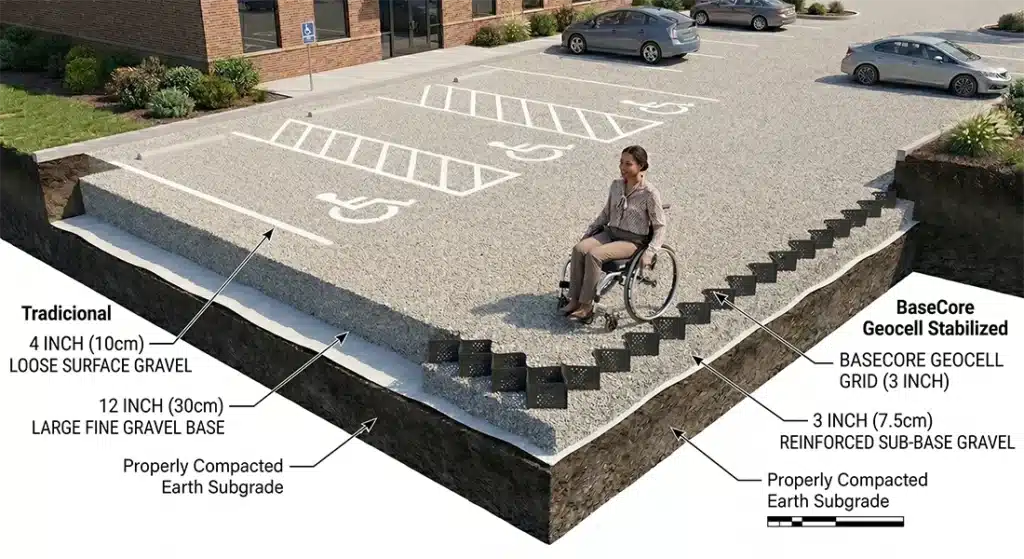

Parking Space Marking

Defining parking spaces in a gravel parking lot presents unique challenges compared to painted lines on asphalt:

  • Conventional marking limitations: Traditional methods like wooden dividers or painted stones require frequent maintenance and replacement
  • Space optimization: Clearly defined parking areas maximize capacity utilization, potentially increasing available parking by 15-20% compared to unmarked gravel lots
  • Professional appearance: Distinct parking spaces create a more organized, professional impression for customers and visitors

The ability to create lasting parking space delineation without ongoing maintenance represents a significant advantage for commercial property owners seeking to maximize both functionality and appearance.

Vehicle Access Considerations

Different types of vehicles have varying impacts on your gravel parking lot construction:

  • Delivery area challenges: Heavy trucks can quickly damage standard gravel surfaces through rutting and displacement
  • BaseCore HD reinforcement: Higher-strength geocells designed specifically for heavy-duty applications provide superior support in loading zones and delivery areas
  • Emergency vehicle access: Fire lanes and emergency access routes require special attention to ensure stability under all conditions
  • ADA compliance: BaseCore systems create stable, navigable surfaces that help meet Americans with Disabilities Act requirements for accessible parking

By strategically deploying different BaseCore product options based on anticipated traffic patterns, property owners can create customized solutions that address specific challenges within a single parking area.

Weather Adaptation

Seasonal changes present ongoing challenges for gravel parking lot maintenance:

  • Winter considerations: Snow removal on standard gravel often displaces significant material
  • BaseCore winter advantage: The cellular confinement prevents plows from catching and displacing gravel, dramatically reducing spring maintenance needs
  • Freeze-thaw cycle resistance: BaseCore’s drainage capabilities minimize water retention that leads to frost heave and surface deterioration
  • Summer heat performance: Stable surfaces reduce rolling resistance, improving vehicle efficiency and comfort during hot weather

The year-round performance advantages of stabilized systems translate directly into reduced maintenance expenses and extended service life for your parking investment.

BaseCore Stabilization Technology

Modern gravel parking lot design has been revolutionized by advanced stabilization systems. BaseCore’s geocell and geotextile technologies represent the cutting edge of this field, offering commercial property owners unprecedented performance and value.

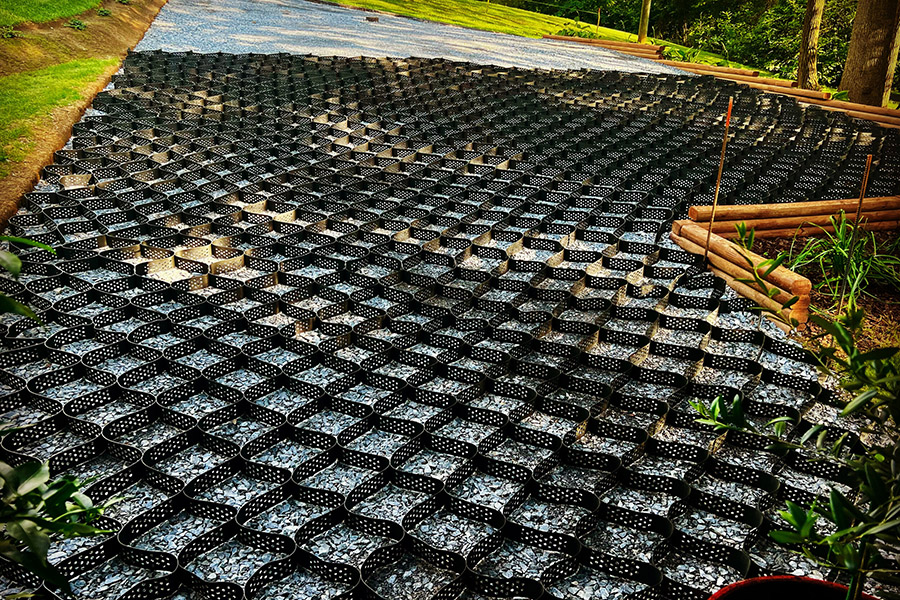

Understanding Geocell Technology

BaseCore’s geocell systems provide structural reinforcement through a unique cellular confinement approach:

  • Structure and materials: High-density polyethylene (HDPE) panels expand to create a honeycomb pattern of interconnected cells that contain and stabilize gravel
  • Load distribution mechanism: Applied forces are distributed horizontally across multiple cells, preventing localized compaction and rutting
  • Installation efficiency: Lightweight panels are easily transported and quickly deployed, reducing labor costs during gravel parking lot construction
  • Expansion capability: Each BaseCore panel expands to cover approximately 100 square feet, allowing rapid installation even on large commercial projects

This three-dimensional confinement system transforms loose gravel into a semi-rigid, stable surface capable of supporting significant traffic while maintaining its integrity over time.

BaseCore HD vs. Standard Solutions

Different traffic requirements demand appropriate stabilization solutions:

  • BaseCore standard geocells: Ideal for general parking areas with primarily light vehicle traffic
    • Cell depth:3-4 inches for optimal performance
    • Material thickness: Engineered for everyday commercial applications
    • Load capacity: Excellent for cars, SUVs, and light trucks
  • BaseCore HD (Heavy Duty) geocells: Designed for intensive commercial applications
    • Enhanced material thickness: Up to 50% stronger than standard cells
    • Superior joint connections: Withstand repetitive heavy loading without separation
    • Deeper cell options: Available in 3-8 inch depths for maximum stability
    • Ideal applications: Delivery zones, fire lanes, dumpster areas, and high-traffic entrances

This tiered approach allows commercial property owners to invest in heavy-duty stabilization specifically where needed, optimizing the cost-effectiveness of their commercial gravel parking lot.

Geotextile Foundation Benefits

BaseCore’s integrated geotextile solutions complement their geocell technology:

  • Separation function: Prevents mixing of subgrade soil with valuable base materials
  • Filtration capability: Allows water passage while preventing fine soil migration
  • Added structural support: Distributes loads across a wider area to prevent localized failures
  • Installation efficiency: Pre-attached options eliminate the labor of separate geotextile installation

For challenging soil conditions, BaseCore’s geotextiles provide an essential foundation layer that significantly enhances overall gravel parking lot performance and longevity.

Performance Metrics and Case Studies

The real-world benefits of BaseCore systems are demonstrated through measurable performance improvements:

  • Maintenance reduction: Commercial properties using BaseCore systems report 70-80% lower annual maintenance costs compared to unstabilized gravel surfaces
  • Material retention: Gravel loss reduced by up to 90%, virtually eliminating the need for periodic resurfacing
  • Extended lifespan: Properly installed BaseCore parking lots maintain structural integrity for 40+ years with minimal intervention
  • Return on investment: Typical payback period of 2-4 years through eliminated maintenance expenses, after which savings accrue directly to the bottom line

Case study example: A retail development in the Midwest replaced their conventional gravel lot with a BaseCore-stabilized system and documented:

  • 86% reduction in annual maintenance costs
  • Complete elimination of customer complaints about dust and loose gravel
  • Successful performance through three freeze-thaw cycles with no significant degradation

These performance metrics illustrate why BaseCore has become the preferred solution for commercial property owners seeking both initial affordability and long-term value from their gravel parking lot construction investment.

Next Steps

With an understanding of practical considerations and BaseCore’s stabilization technology, you’re well-equipped to plan an exceptional gravel parking solution. In the upcoming sections, we’ll explore:

  • Maintenance best practices for stabilized gravel surfaces
  • Cost analysis and long-term value considerations
  • Working with contractors for optimal results

Ready to transform your gravel parking project with industry-leading stabilization technology? Contact BaseCore today to discuss how our geocell and geotextile systems can create a durable, low-maintenance solution for your specific needs.

Maintenance Best Practices

Even the best-designed gravel parking lot requires some maintenance to deliver maximum value throughout its lifespan. However, when constructed using BaseCore stabilization systems, this maintenance is dramatically reduced compared to traditional unstabilized surfaces. Understanding proper care techniques ensures your commercial gravel parking lot remains functional and attractive with minimal effort and expense.

Routine Maintenance for Stabilized Surfaces

BaseCore-reinforced parking areas require significantly less intervention than conventional gravel:

  • Inspection schedule: Quarterly visual assessments are typically sufficient, compared to monthly or weekly for unstabilized surfaces
  • Surface leveling: While traditional gravel lots may need regrading 3-4 times annually, BaseCore-stabilized surfaces generally require attention only once per year or less
  • Material replenishment: The cellular confinement of BaseCore geocells reduces gravel displacement by up to 90%, virtually eliminating the need for regular topping-up
  • Edge maintenance: The structured containment prevents perimeter washout, maintaining clean, defined parking lot boundaries with minimal intervention

This reduced maintenance schedule translates directly to lower operational costs and fewer disruptions to business activities, delivering both financial and practical benefits to property owners.

Weed and Vegetation Control

Unwanted vegetation can impact both functionality and appearance:

  • Prevention advantages: BaseCore’s geotextile foundation creates an effective barrier against weed growth from below
  • Spot treatment efficiency: Any limited vegetation that does appear is easily addressed with targeted removal rather than broad chemical applications
  • Eco-friendly options: The reduced need for herbicides supports environmental goals and regulatory compliance
  • Seasonal considerations: Establishing a simple spring and fall vegetation check is usually sufficient with properly installed BaseCore systems

The reduced organic matter and improved drainage of BaseCore installations naturally discourage vegetation growth, minimizing this common maintenance challenge.

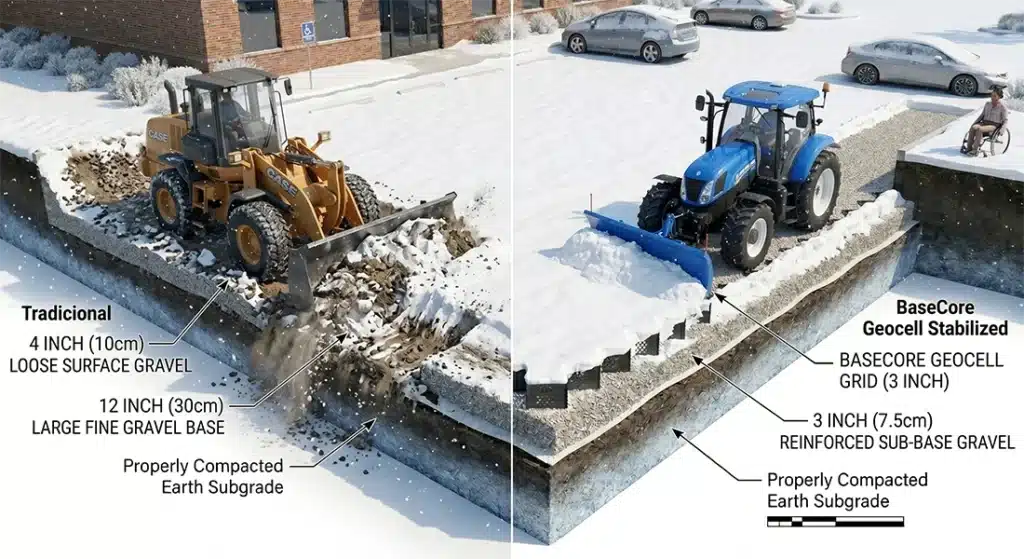

Snow and Ice Management

Winter maintenance presents unique challenges for any parking surface:

  • Equipment selection: Use plows with rubber edges to prevent catching on the gravel surface
  • BaseCore winter advantage: The cellular structure prevents plows from displacing significant material, unlike traditional gravel surfaces
  • Salt and chemical considerations: BaseCore’s excellent drainage capabilities help minimize ice formation, reducing de-icing chemical requirements
  • Spring recovery: BaseCore-stabilized lots typically require minimal post-winter restoration, eliminating the significant spring maintenance costs associated with conventional gravel parking lot construction

Property managers with BaseCore-reinforced surfaces consistently report up to 75% reduction in spring maintenance requirements following winter operations—a significant advantage in northern climates.

Long-Term Performance Factors

Several factors influence how a stabilized gravel parking lot performs over time:

  • Expected lifespan: While traditional gravel surfaces may require complete reconstruction every 5-7 years, BaseCore-reinforced lots typically maintain their integrity for 40+ years with proper maintenance
  • Performance indicators: Regular inspection should focus on:
    • Surface evenness and consistency
    • Edge definition and containment
    • Drainage effectiveness during rainfall
    • Cell structure integrity in high-traffic zones
  • Rehabilitation vs. replacement: Minor issues can usually be addressed through targeted repair rather than complete reconstruction, preserving your initial investment

This extended performance cycle represents perhaps the most significant long-term advantage of choosing BaseCore technology for your commercial gravel parking lot.

Cost Analysis and ROI

Understanding the complete financial picture helps business owners and property managers make informed decisions about their parking solutions. While initial construction costs are important, the true value of any parking system must be evaluated through long-term return on investment calculations.

Initial Investment Comparison

The upfront costs of various parking options reveal important differences:

  • Standard unstabilized gravel: $1.50-3.00 per square foot
    • Basic excavation and grading
    • Simple base installation
    • Surface gravel application
    • Minimal drainage provisions
  • BaseCore-stabilized gravel system: $3.50-6.00 per square foot
    • Proper site preparation
    • Engineered base construction
    • BaseCore geocell and geotextile installation
    • Premium surface material
    • Comprehensive drainage integration
  • Asphalt parking lot: $9.00-12.00 per square foot
    • Complete site preparation
    • Substantial base requirements
    • Multiple asphalt layers
    • Sealcoating application
    • Painted line marking
  • Concrete parking surface: $12.00-18.00 per square foot
    • Extensive site preparation
    • Reinforced concrete installation
    • Expansion joint construction
    • Surface finishing and curing
    • Line marking application

While BaseCore systems represent a premium approach to gravel parking lot design, they remain significantly more affordable than traditional paved alternatives while offering superior performance compared to unstabilized gravel.

Annual Maintenance Cost Breakdown

The year-over-year expenses reveal the true cost advantage of stabilized systems:

  • Traditional unstabilized gravel: $0.50-1.00 per square foot annually
    • Quarterly regrading: $0.15-0.25/sq ft
    • Material replacement: $0.20-0.40/sq ft
    • Dust control treatment: $0.10-0.20/sq ft
    • Weed management: $0.05-0.15/sq ft
  • BaseCore-stabilized gravel: $0.10-0.20 per square foot annually
    • Annual light grading: $0.05-0.10/sq ft
    • Minimal material replenishment: $0.03-0.05/sq ft
    • Limited dust treatment: $0.01-0.03/sq ft
    • Spot weed control: $0.01-0.02/sq ft
  • Asphalt surface: $0.85-1.50 per square foot annually (averaged over lifespan)
    • Crack sealing and patching
    • Periodic sealcoating
    • Complete resurfacing every 7-10 years
    • Line repainting

The 80% reduction in annual maintenance costs with BaseCore systems creates substantial savings that compound over the parking lot’s lifespan.

Return on Investment Timeline

For a typical 20,000 square foot commercial gravel parking lot, the financial advantage becomes clear when analyzed over time:

10-Year Cost Comparison (20,000 sq ft lot)

Unstabilized Gravel:

  • Initial construction: $50,000
  • Annual maintenance: $15,000
  • 10-year total: $200,000
  • Likely requires complete reconstruction once during this period

BaseCore-Stabilized System:

  • Initial construction: $90,000
  • Annual maintenance: $3,000
  • 10-year total: $120,000
  • Maintains structural integrity throughout period

Asphalt Parking Lot:

  • Initial construction: $200,000
  • Annual maintenance: $12,000 (averaged)
  • 10-year total: $320,000
  • Requires major resurfacing at approximately 8-10 years

This analysis demonstrates how BaseCore’s higher initial investment yields significant savings over time, with the break-even point typically occurring at year 3-4 of operation. Beyond this point, the maintenance savings represent direct financial benefit to the property owner.

Additional Value Factors

Several less obvious benefits contribute to the overall value proposition:

  • Operational continuity: Reduced maintenance means fewer business disruptions
  • Enhanced property value: Professional appearance and low maintenance requirements improve commercial property marketability
  • Environmental advantages:
    • Natural drainage reduces stormwater management costs
    • Lower dust production improves air quality
    • Reduced need for chemical treatments benefits local ecosystems
  • User experience improvements: Stable, clean surfaces enhance customer perception and satisfaction

These supplementary benefits further strengthen the case for choosing BaseCore technology for your gravel parking lot construction project.

Next Steps

With a comprehensive understanding of maintenance requirements and cost considerations, you’re now equipped to make informed decisions about your parking lot investment. In our final section, we’ll explore:

  • Working with contractors for optimal installation
  • Quality control during construction
  • Resources for ongoing support

Ready to experience the financial and performance advantages of BaseCore stabilization for your commercial gravel parking project? Contact our team today for a customized assessment and detailed quote
